| Rotomotive motors conform to the dimensional requirement laid down in the standard IEC 72-1. |
| T IEC 72-1 specifies the dimensional requirements for all the frame & flange sizes. |
| All motors are multiple voltage multi-frequency 50 Hz, F class insulation (H on request), S1 continuous duty service, IP55 protection (IP56, 66)IE2 or IE3 efficiency classs tropicalized winding suitable for inverter power supply. |
| IE2, high efficiency class IE 60034-30 |
| IE3, premium efficiency class IE 60034-30 |
| Rotomotive offers Delphi ATDC (DC Brakes), AT24 ( 24V DC Brakes) and ATAC (AC Brakes). |
| These are of electromagnetic type and normally OFF i.e. the braking action occurs in the absence of power supply. |
| The brake insulation class is F. |
| The brake lining is asbestos free as per most recent EEC Directives pertaining to Workplace Hygiene and Safety. |
| All brake assemblies are protected against corrosion by painting or heat galvanizing and resined winding. |
| The parts most subjected to war are specially treated to ensure they become wear resistance. |
| Delfire series of motors are designed to be a part of smoke and heat control ventilation systems. |
| These systems create a smoke free layer above the floor by removing the smoke. |
| Thus, they improve conditions for safe escape/rescue of people, animals and the protection of property. |
| They also permit the fighting of fire while still in its early stage. |
| They are also used with jet fans to convey smoke, NOx, carbon monoxide and other gases from tunnels, car parks, basement areas and the likes. |
| In many cases they operate in the hazard prevention mode. In case of fire outbreak, the temperature rises rapidly. |
| Delfire motor work for a guaranteed period of 1 or 2 hours at a continuous temperature of 300, 250 & 200º Celsius, depending upon requirement. These can be single or two speed motors and are governed by the harmonized European standard EN12101. |

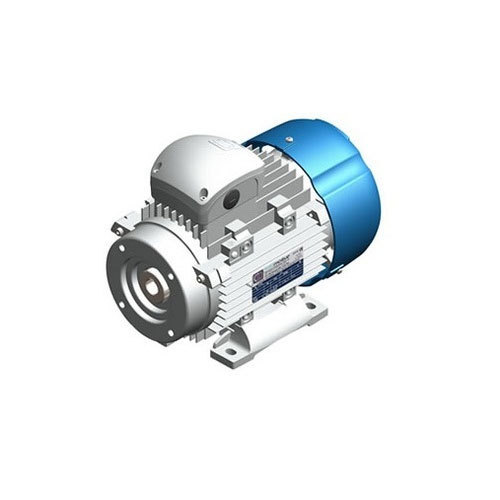

| Rotomotive has developed a whole range of hollow shaft motor, particularly for hydraulic pump application. This approach has significantly reduced the cost while at the same time improved efficiency. Final product is lighter & has reduced overall length. |
| Eliminate the need for shaft coupling |
| Compact design |
| Low moment of inertia |
| High efficiency |
| Plug & Play |
| Option of high pressure oil seals |
| Delphi Exd series asynchronous 3 Phase squirrel cage induction motors are manufactured as per IS/IEC 60779-1 :2007 for operation in hazardous locations classified as zone 1 and zone 2 areas as per IS:5572. |
| These motors are available in frame sizes of 80 to 160 In 2, 4, 6 and 8 pole ratings. |
| Rotomotive make flame proof motors for Gas group I, IIA, IIB and Zone 1 & Zone 2 atmosphere. |
| Users of electric motors and OEM manufacturers covering a diverse range of industrial applications have been depending on the performance, reliablity and quality construction of Rotomotive’s custom designed motor products. |
| Rotomotive offers motors for various applications in industries like wind energy, hydraulic power packs, electric transportation, construction, mining, HVAC blowers, cooling units and smoke evacuation system. |
| Includes hybrid motots, crane motors and low voltage motors. |
