| The TR1D series slim single display PID temperature controllers feature high-speed sampling cycle rate of 50ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with simultaneous heating and cooling control. The space-saving design with 22.5mm width and DIN rail bracket allows easy installation in limited spaces. The front display can be easily used to set the control status and parameters. |
| Compact, space-saving design with 22.5mm width size |
| 50ms high-speed sampling and ±0.3% display accuracy |
| Simultaneous heating/cooling and automatic/manual control function |
| The TMH series modular multi-channel high performance temperature controllers are capable of controlling up to 2 or 4 channels of input/output simultaneously, with 50 ms high-speed sampling cycle, ±0.3% measurement accuracy, and simultaneous heating and cooling control function. The control channels can be expanded without additional wiring for power or communication. The control modules can be expanded up to 32 units and 128 channels. With each communication module, the units can be expanded up to 32 units (16 control modules & 16 option modules). Up to 16 communication modules can be connected to a master device for a total of 1,024 control channels. The modular design allows flexible expansion depending on user requirements, with various option modules available including analog input/output modules, digital input / alarm output modules, CT input modules, PLC ladder-less communication (RS422/485) and Ethernet communication modules. Parameter configuration and status monitoring is available with PCs using USB, RS422/RS485, or Ethernet communication connection. |
| Easy maintenance with detachable body and base terminal |
| Power supply and communication with expansion connectors (up to 32 units) |
| Parameter configuration with PCs (USB or RS485 communication) : DAQMaster software provided (comprehensive device management software) |
| The TK series high performance PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control of any required application. |
| 50 ms high-speed sampling rate and ±0.3% display accuracy |
| Simultaneous heating and cooling control function |
| Switch between current output and SSR drive output |
| The TCN series dual display PID temperature controllers offer excellent performance and cost efficiency. The controllers offer high-speed sampling rate of 100 ms and ±0.5% display accuracy. Relay output and SSR drive output are both supported. The TCN series models can simultaneously display PV and SV. The bright LED displays with large characters provide easy and clear value readings. |
| 100 ms high-speed sampling rate and ±0.5% display accuracy |
| Switch between relay output and SSR drive output |
| Dual digital display (PV/SV) |
| The TC series single display PID temperature controllers offer excellent performance and cost efficiency. The controllers feature high-speed sampling rate of 100 ms and ±0.5% display accuracy. Relay output and SSR drive output are both supported. The TC series models can easily switch between PV and SV. The bright LED displays with large characters provide easy and clear value readings. |
| 100 ms high-speed sampling rate and ±0.5% display accuracy |
| Switch between relay output and SSR drive output |
| Single digital display (switch between PV and SV) |
| The TA series temperature controllers offer simple and accurate temperature control with analog dial. The controllers are capable of auto-tuning PID temperature control and ON/OFF control, toggled through an external switch. The LED deviation and control output indicators provide clear status display. |
| Auto-tuning PID temperature control |
| PID and ON/OFF control: toggle via external switch |
| Deviation indicators (green, red LED) and control output indicator (red LED) |
| The TZ series temperature controllers are equipped with dual speed PID control for high-speed or high-precision temperature control. The temperature controllers feature ±0.3% high display accuracy, 2-step auto tuning function and supports up to 13 different types of inputs, providing outstanding temperature control at affordable costs. |
| Dual-speed PID control |
| 2-step auto tuning function |
| High display accuracy: ±0.3% of full-scale value |
| The TZN series temperature controllers are equipped with dual speed PID control for high-speed or high-precision temperature control. The temperature controllers feature ±0.3% high display accuracy, 2-step auto tuning function and supports up to 13 different types of inputs, providing outstanding temperature control at affordable costs. |
| Dual-speed PID control |
| 2-step auto tuning function |
| High display accuracy: ±0.3% of full-scale value |
| The TM series modular type PID temperature controllers are capable of controlling up to 4 channels (TM4) or 2 channels (TM2) simultaneously. Using the expansion connectors, the TM series can be easily expanded to control up to 124/62 channels (TM4/TM2) without additional wiring for power or communication. The temperature controllers feature high-speed sampling cycles (TM4: 100 ms / TM2: 50 ms), RS485 communication support, and simultaneous heating and cooling control. Parameter configuration and status monitoring via PC is easy with the included DAQMaster software. |
| Multi-channel (4-channel: TM4 / 2-channel: TM2) input and output control |
| High-speed sampling cycle (4-channel: 100 ms / 2-channel: 50 ms) |
| Module connection and expansion with expansion connectors |
| The TB42 series board type temperature controllers offer cost effective temperature control and high installation flexibility. The units can be easily installed on panels using the mounting holes. The controllers feature dual speed PID control for high-speed or high-precision temperature control and timer operation function. |
| High performance temperature control at low cost |
| Flexible installation in various applications |
| Dual-speed PID control |
| The T3/T4 Series thumbwheel switch temperature controllers and indicators provide quality performance with simple operation at low costs. The controllers and indicators feature highly accurate temperature measurement and control and are available in various sizes for installation flexibility. Upgraded features include a revamped design and reduced size. |
| Various control output options: relay, SSR drive, current |
| 2 independent set points and control outputs for heating and cooling control (T4LP) |
| Various sizes (W 48 x H 48, W 48 x H 96, W 72 x H 72, W 96 x H 96 mm) |
| The TC3YF refrigeration temperature controllers offer reliable and optimal cooling control with diverse features and functions. The controllers offer ON/OFF control using compressor output and optional models with defrost output and evaporator fan outputs are available. Operation cycle programming is also available, to protect contents of the refrigerator in case of errors. |
| ON/OFF control |
| Standard input type: thermistor (NTC) *RTD (Pt100Ω) input models available upon request. |
| Temperature range: - Thermistor (NTC): -40.0 to 99.9 °C (-40 to 212 °F) - RTD (Pt100Ω): -99.9 to 99.9 °C (-148 to 212 °F) |
| The TF3 series refrigeration temperature controllers offer reliable and optimal cooling control with diverse features and functions. The controllers are available in standard refrigeration and air-cooling panel installation sizes for convenient installation. The series also features various user-friendly functions including defrost sync function, real-time clock function, alarm function, night-mode, communication output and more. Users can also remotely monitor real-time temperature and output status with the remote display units (TFD series, sold separately). |
| Standard installation size for refrigeration panels (W 70.3 x H 28.2 mm) |
| Various compressor load current capacity: 5A, 16A, 20A |
| Various user-friendly functions (defrost sync, real-time clock, alarm, etc.) |
| The T3/T4 series digital temperature indicators provide accurate temperature display with simple operation. The indicators feature highly accurate temperature measurement and are available in various sizes for installation flexibility. Upgraded features include a revamped design and reduced size. |
| Digital Temperature Indicators |
| Additional input sensor types: K(CA) and J(IC) (T3NI models) |
| Various sizes (W 48 x H 24, W 48 x H 48, W 48 x H 96, W 72 x H 36, W 72 x H 72, W 96 x H 48, W 96 x H 96 mm) |
| The T4WM digital temperature indicators can display up to 5 input channels from separate sensors. The units feature high accuracy measurement and display of ±0.5% and users can select auto or manual channel switching based on preference. Auto switching time interval can be set up to 10 seconds. |
| Digital temperature indicators |
| High accuracy measurement and display: ±0.5% |
| 5-channel temperature display |
| The KPN series high performance digital process controllers offer high-speed sampling speed of 50 ms and high display accuracy of ±0.3%. The large, high luminance LED dual display provides clear PV and SV readings with bar graph display of control output value (MV). The series also feature high performance control with independent heating/cooling control and automatic/manual control functions. |
| High speed sampling of 50ms and ±0.3% display accuracy |
| Enable to check control output operation amount by adopting bar graph |
| Simultaneous heating/cooling control and automatic/manual control for high performance control |
| The THD series temperature/humidity transducers have built-in temperature and humidity sensors and are capable of various outputs including DC 4-20 mA, 1-5 VDC, RS485 communication. The temperature sensors have a range of -19.9 to 60.0°C and the humidity sensors have a range of 0.0 to 99.9% RH. The THD series is available in room type, duct mount type, and wall mount types. |

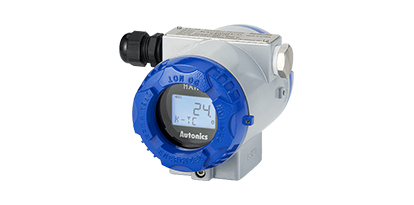

| The KT-502H series temperature transmitters with HART protocol supports 22 types of input. The display can be rotated 330° and the backlit display offers high visibility even in dark environments. |
